Product Details:
Payment & Shipping Terms:
|
| Product Name: | 2x25.5mw Tubular Turbine | Power: | 2x25.5mw |
|---|---|---|---|
| Applicable Range Head: | 20-200m | Flow: | 0.15-10m3/s |
| Feature: | High Peak Efficiency Reaction | Horizontal Mixed-flow Type Rated Power（KW）: | 145~7500 |
| Highlight: | 20m head water powered generator,2x25.5mw Hydro Turbine Generators,0.15m3/s 20m head hydro power generator |
||
2x25.5mw Tubular Turbine Hydro Turbine Generators
Introducton of tubular turbine
The water flow between the guide vane and runner of the tubular turbine basically has no change of direction. In addition, the straight cone-shaped draft tube is adopted, so that the discharge does not need to be turned in the draft tube, so the efficiency is high, the flow capacity is large, and the number of revolutions High, especially suitable for low-head small riverbed power stations with a water head of 3-20 meters.
Our typical HPP project references
| Turbine Type | Type | Model | Typical Performance |
| Francis | Tianhuaban HPP,Yunnan | HLD294-LJ-340 | Max. single installed capacity 99MW |
| SF99-28/6800 | |||
| GD3 HPP,Ethiopia | HLD892-LJ-245 | Max. running head Hmax=273m | |
| SF85-14/5000 | |||
| Shidi HPP , Chongqing | HLA551C-LJ-475 | Diameter of runner=4750mm Max. Foundation=9900mm |
|
| SF60-56/9900 | |||
| Pangduo HPP, Tibet | HLD420D-LJ-318 | Highest altitude 4100m Head variation Hmax/Hmin=1.96 |
|
| SF40-32/6800 | |||
| Axial-flow | Hongfa HPP, Guangdong | ZZD505A-LH-450 | Max.single installed capacity 50MW |
| SF50-32/6800 | |||
| Srepok4 HPP,Vietnam | ZZD471-LH-580 | Max. Diameter of runner D1=5800mm |
|
| SF40-52/9000 | |||
| Bulb | Dafutan HPP,Hunan | GZB1000-WP-670 | Max.single installed capacity 40MW Max.Diameter of runner |
| SFWG40-70/7450 | |||
| Pelton | Nabang HPP, Yunan | CJ1085-L-170/6×14.8 | Max.single installed capacity 60MW |
| SF60-10/4100 | |||
| Nanshan1 HPP, Guangxi | CJA237a-L-165/4×10 | Max.running head Hmax=989.7m |
|
| SF30-8/3100 |

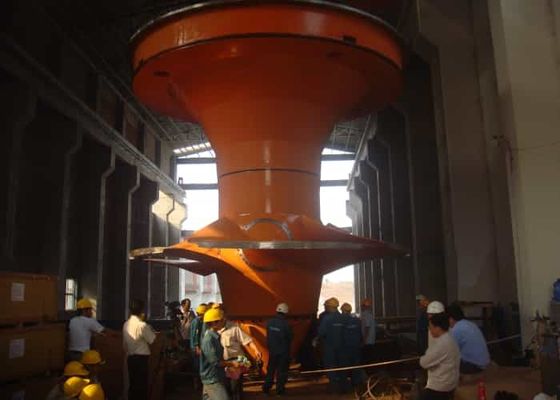

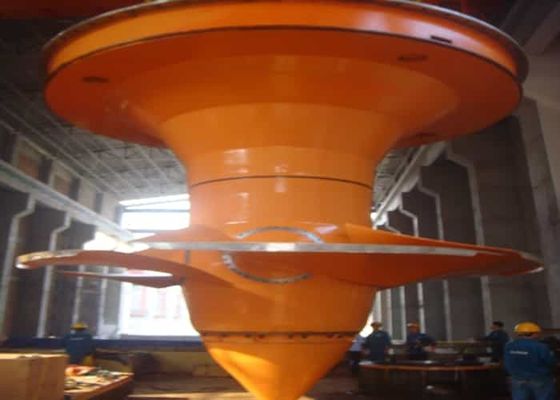

Manufacturing capacity

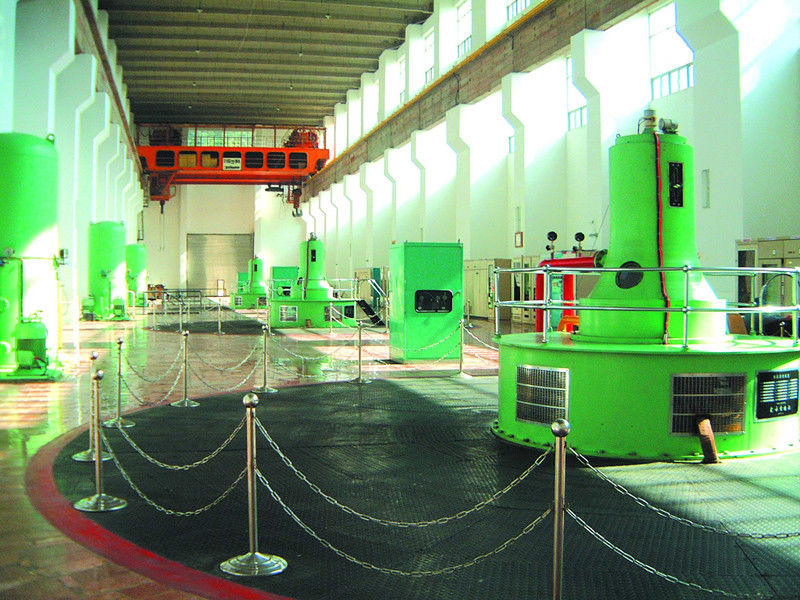

Some cases
