23m Water Head 750.4rpm 40MW Bulb Hydro Turbine

I'm Online Chat Now

23m Water Head 750.4rpm 40MW Bulb Hydro Turbine

23m Water Head 750.4rpm 40MW Bulb Hydro Turbine
23m Water Head 750.4rpm 40MW Bulb Hydro Turbine 23m Water Head 750.4rpm 40MW Bulb Hydro Turbine

Large Image :  23m Water Head 750.4rpm 40MW Bulb Hydro Turbine

Product Details:
Place of Origin: CHINA
Brand Name: Dongfeng Electric
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wood box
Payment Terms: L/C, T/T
Detailed Product Description
Product Name: 4x16MW Bulb Hydro Turbine Power: 40MW Single Installed Capacity
Axial-extension Tubular Typ Rated Power(KW): 450~2700 Head: 23m
Runner Diameter: 670cm Rotating Speed: 750.4rpm
High Light:

40MW Bulb Hydro Turbine

,

750.4rpm bulb turbine generator

,

dongfeng 40MW bulb turbine generator

40MW Single Installed Capacity 4x16MW Bulb Hydro Turbine









The introduction of tubular type hydro turbine



The space between the poles of the bulb turbine rotor excitation winding is small, and the number of excitation ampere turns is limited, so a higher power factor is selected. The moment of inertia and inertia time constant of the hydro-generator of the bulb-type unit are small, so the speed rise rate β value of the unit during load rejection is larger, generally greater than 45%, and the runaway speed can reach 2.5 to 3.5 times the rated speed. Compared with the vertical turbine generator of the same capacity, the rated speed of the bulb unit can be increased by more than 10%, the inner diameter of the generator can be reduced by more than 25%, and the weight of the entire unit (including the turbine) can be reduced by 25%, which is more economical A reasonable model, mostly used for low-head hydropower stations with a working head range of 3~25m.



Technical parameters



Bulb tubular type Rated power(KW):3000~40000
Axial-extension tubular typ Rated power(KW):450~2700




Our typical HPP project references



Turbine Type Type Model Typical Performance
Francis Tianhuaban HPP,Yunnan HLD294-LJ-340 Max. single installed capacity 99MW
SF99-28/6800
GD3 HPP,Ethiopia HLD892-LJ-245 Max. running head Hmax=273m
SF85-14/5000
Shidi HPP , Chongqing HLA551C-LJ-475

Diameter of runner=4750mm

Max. Foundation=9900mm

SF60-56/9900
Pangduo HPP, Tibet HLD420D-LJ-318

Highest altitude 4100m

Head variation Hmax/Hmin=1.96

SF40-32/6800
Axial-flow Hongfa HPP, Guangdong ZZD505A-LH-450 Max.single installed capacity 50MW
SF50-32/6800
Srepok4 HPPVietnam ZZD471-LH-580 Max. Diameter of runner D1=5800mm
SF40-52/9000
Bulb Dafutan HPP,Hunan GZB1000-WP-670 Max.single installed capacity 40MW Max.Diameter of runner
SFWG40-70/7450
Pelton Nabang HPP, Yunan CJ1085-L-170/6×14.8

Manufacturing capacity

23m Water Head 750.4rpm 40MW Bulb Hydro Turbine 123m Water Head 750.4rpm 40MW Bulb Hydro Turbine 223m Water Head 750.4rpm 40MW Bulb Hydro Turbine 323m Water Head 750.4rpm 40MW Bulb Hydro Turbine 4

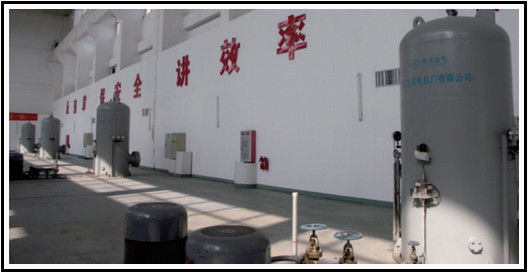

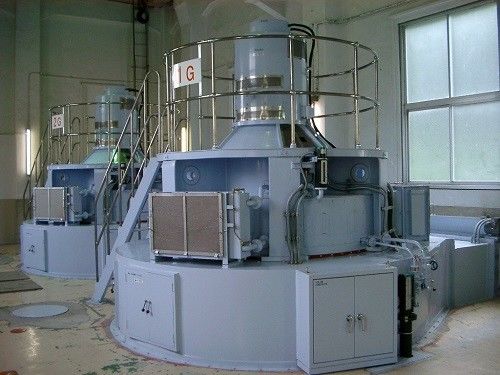

Some cases

23m Water Head 750.4rpm 40MW Bulb Hydro Turbine 523m Water Head 750.4rpm 40MW Bulb Hydro Turbine 623m Water Head 750.4rpm 40MW Bulb Hydro Turbine 723m Water Head 750.4rpm 40MW Bulb Hydro Turbine 8
