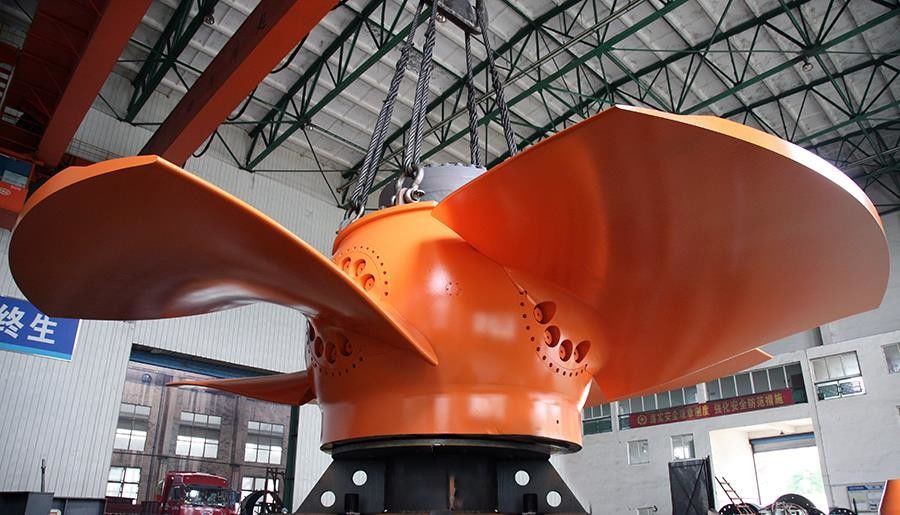

Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine

I'm Online Chat Now

Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine

Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine
Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine

Large Image :  Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine

Product Details:
Place of Origin: CHINA
Brand Name: Dongfeng Electric
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wood box
Payment Terms: L/C, T/T
Detailed Product Description
Product Name: 40000kw Bulb Hydro Turbine Generator Bulb Tubular Type Rated Power(KW): 40000
Axial-extension Tubular Typ Rated Power(KW): 450~2700 Head: 23m
Runner Diameter: 670cm Rotating Speed: 750.4rpm
High Light:

6.7m diameter bulb hydro turbine

,

40000kw hydroelectric power generator

,

6.7m diameter hydroelectric power generator

Hydroelectric Power Plant 40000kw Bulb Hydro Turbine Generator



3000KW Bulb Tubular Type Rated Power Bulb Hydro Turbine Generator

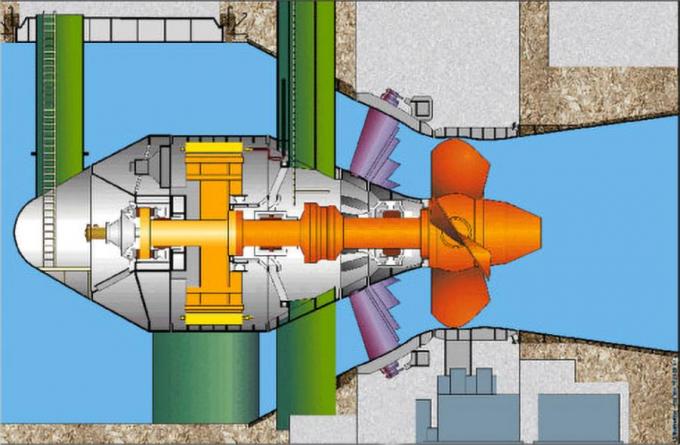

The introduction of tubular type hydro turbine



After many years of design, manufacturing and actual operations, and the cooperation with leading international companies in possessing tubular machine technologies such as Andritz Company and Hitachi Company, our company has accumulated rich experience in the unit design, manufacture and service, forming the hydro turbine unit with characteristics of Dongfeng.



The company has provided a total of more than 40 power stations with cross-flow type hydro turbine units with unit capacity of about 40MW and below, among which the largest diameter is 6.7m.



Technical parameters



Bulb tubular type Rated power(KW):3000~40000
Axial-extension tubular typ Rated power(KW):450~2700




Our typical HPP project references



Turbine Type Type Model Typical Performance
Francis Tianhuaban HPP,Yunnan HLD294-LJ-340 Max. single installed capacity 99MW
SF99-28/6800
GD3 HPP,Ethiopia HLD892-LJ-245 Max. running head Hmax=273m
SF85-14/5000
Shidi HPP , Chongqing HLA551C-LJ-475

Diameter of runner=4750mm

Max. Foundation=9900mm

SF60-56/9900
Pangduo HPP, Tibet HLD420D-LJ-318

Highest altitude 4100m

Head variation Hmax/Hmin=1.96

SF40-32/6800
Axial-flow Hongfa HPP, Guangdong ZZD505A-LH-450 Max.single installed capacity 50MW
SF50-32/6800
Srepok4 HPPVietnam ZZD471-LH-580 Max. Diameter of runner D1=5800mm
SF40-52/9000
Bulb Dafutan HPP,Hunan GZB1000-WP-670 Max.single installed capacity 40MW Max.Diameter of runner
SFWG40-70/7450
Pelton Nabang HPP, Yunan CJ1085-L-170/6×14.8

Manufacturing capacity

Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine 1Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine 2Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine 3Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine 4
