Product Details:
Payment & Shipping Terms:
|
| Product Name: | Environmentally Friendly Hydro Power Plant Project | Power: | 2x25.5mw |
|---|---|---|---|
| Applicable Range Head: | 20-200m | Flow: | 0.15-10m3/s |
| Feature: | High Peak Efficiency Reaction | Horizontal Mixed-flow Type Rated Power（KW）: | 145~7500 |
| Highlight: | 10m3/s water turbine electric generator,145kw Dongfeng Generators,2x25.5mw 10m3/s hydroelectric power generator |
||

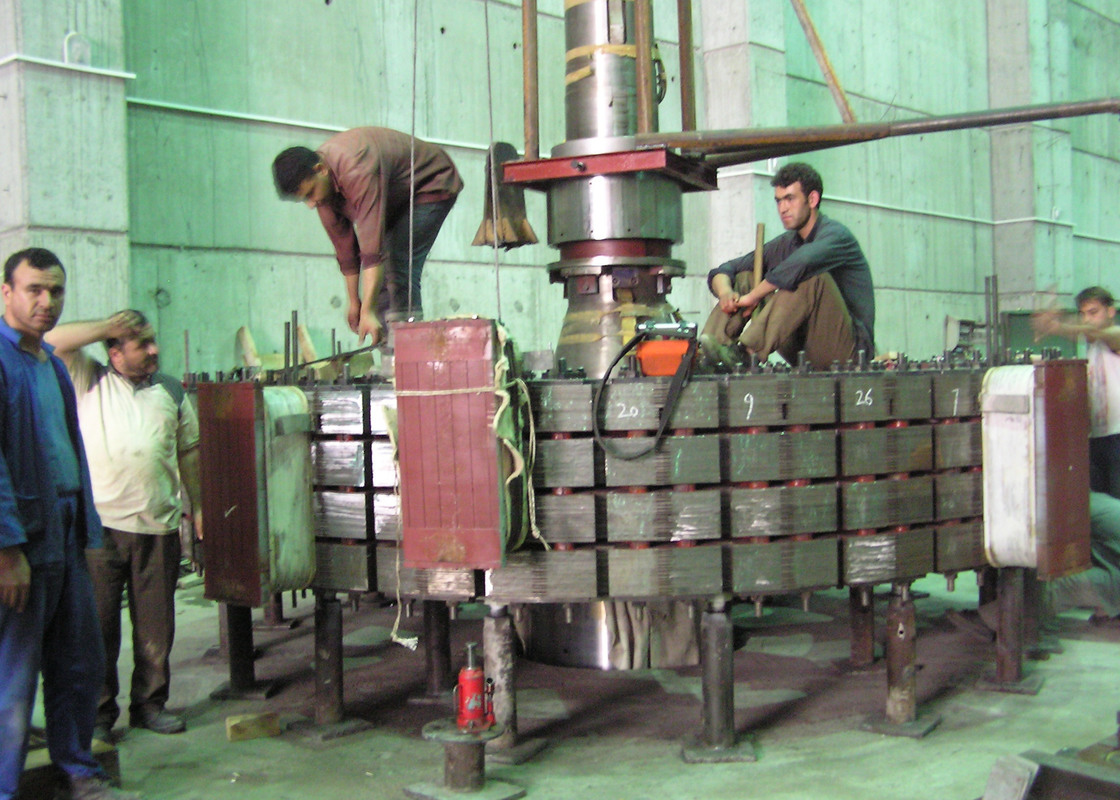

Environmentally Friendly Hydro Power Plant Project For Turkish MENTSA
Our advantage
1) Simple structure ,easy in installation and maintation.
2) Adopting high quality material with high efficiency.
3) Optional color ,type and material.
4) Professinal advice to the most suitable generator according to the station parameter.
5) Long lifespanof 30----50 years.
Our typical HPP project references
| Turbine Type | Type | Model | Typical Performance |
| Francis | Tianhuaban HPP,Yunnan | HLD294-LJ-340 | Max. single installed capacity 99MW |
| SF99-28/6800 | |||
| GD3 HPP,Ethiopia | HLD892-LJ-245 | Max. running head Hmax=273m | |
| SF85-14/5000 | |||
| Shidi HPP , Chongqing | HLA551C-LJ-475 | Diameter of runner=4750mm Max. Foundation=9900mm |
|
| SF60-56/9900 | |||
| Pangduo HPP, Tibet | HLD420D-LJ-318 | Highest altitude 4100m Head variation Hmax/Hmin=1.96 |
|
| SF40-32/6800 | |||
| Axial-flow | Hongfa HPP, Guangdong | ZZD505A-LH-450 | Max.single installed capacity 50MW |
| SF50-32/6800 | |||
| Srepok4 HPP,Vietnam | ZZD471-LH-580 | Max. Diameter of runner D1=5800mm |
|
| SF40-52/9000 | |||
| Bulb | Dafutan HPP,Hunan | GZB1000-WP-670 | Max.single installed capacity 40MW Max.Diameter of runner |
| SFWG40-70/7450 | |||
| Pelton | Nabang HPP, Yunan | CJ1085-L-170/6×14.8 | Max.single installed capacity 60MW |
| SF60-10/4100 | |||
| Nanshan1 HPP, Guangxi | CJA237a-L-165/4×10 | Max.running head Hmax=989.7m |
|
| SF30-8/3100 |
Manufacturing capacity
Some cases
