| Place of Origin | CHINA |
| Brand Name | Silk |
High Peak Efficiency Reaction Hydro Power Turbine Generator
| Material | Steel plate/Copper |
| Rated Power | 50KW-20MW |
| Rated Voltage | 400V-10KV |
| Speed range | 150RPM-1000RPM |
| Frequency | 50hz/60hz |
| Excitation | brushless or static excitation system |
| Lifespan | 50 years |
| Application | Electricity Generation |
| Turbine Valve | Butterfly Valve, Gate Valve, Ball Valve |
| Layout pattern | Horizontal or Vertical |
| Generator Insulation | F/F |
| turbine Efficiency | 92%-96% |
| Generator Efficiency | 90%-93% |
Applicable Range
Head: 20-200m Flow: 0.15-10m3/s
Most widely used turbine in the world. (70-80%)Applicable head and flow range is very wide.As a type of reaction turbine, the draft tube can be used to effectively increase net head.Peak efficiency is highest among all turbine types. (85-94%)Due to its complex design and large number of moving parts, maintenance and repair can be significant.
Our typical HPP project references
| Turbine Type | Type | Model | Typical Performance |
| Francis | Tianhuaban HPP,Yunnan | HLD294-LJ-340 | Max. single installed capacity 99MW |
| SF99-28/6800 | |||
| GD3 HPP,Ethiopia | HLD892-LJ-245 | Max. running head Hmax=273m | |
| SF85-14/5000 | |||
| Shidi HPP , Chongqing | HLA551C-LJ-475 | Diameter of runner=4750mm Max. Foundation=9900mm |
|
| SF60-56/9900 | |||
| Pangduo HPP, Tibet | HLD420D-LJ-318 | Highest altitude 4100m Head variation Hmax/Hmin=1.96 |
|
| SF40-32/6800 | |||
| Axial-flow | Hongfa HPP, Guangdong | ZZD505A-LH-450 | Max.single installed capacity 50MW |
| SF50-32/6800 | |||
| Srepok4 HPP,Vietnam | ZZD471-LH-580 | Max. Diameter of runner D1=5800mm |
|
| SF40-52/9000 | |||
| Bulb | Dafutan HPP,Hunan | GZB1000-WP-670 | Max.single installed capacity 40MW Max.Diameter of runner |
| SFWG40-70/7450 | |||
| Pelton | Nabang HPP, Yunan | CJ1085-L-170/6×14.8 | Max.single installed capacity 60MW |
| SF60-10/4100 | |||
| Nanshan1 HPP, Guangxi | CJA237a-L-165/4×10 | Max.running head Hmax=989.7m |
|
| SF30-8/3100 |
Introducton of hydropower
Hydropower, is a form of renewable energy that uses the water stored in dams, as well as flowing in rivers to create electricity in hydropower plants. Like other forms of electricity generation, hydropower uses a turbine to help generate electricity; using the energy of falling or flowing water to turn the blades.
Since 1982, Beijing Silk Road Enterprise Management Services Co., Ltd. has manufactured more than 1200 units for 500 hydropower plants for domestic and overseas market, covering 23 provinces municipalities, autonomous regions in China and near 30 overseas countries and regions, such as Vietnam, Laos, Nepal, Japan, Pakistan, Turkey, India, Ethiopia , Chile, Cuba, USA and so on.
In addition, Beijing Silk Road Enterprise Management Services Co., Ltd. also provided 119 inlet valves for 60 hydropower plants, including 71 sets of Butterfly Valves, with diameter of 700mm~4000mm and pressure of 3.5mpa ~22MPa; 48 sets of Ball Valves, with diameter of 800mm~2500mm and pressure of 20MPa~100MPa, all of them have been operated under full load, over load condition , reliable and safe working.

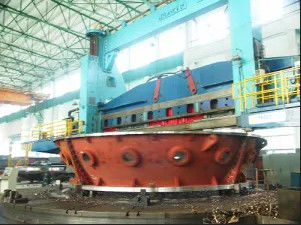

Manufacturing capacity
Some cases
