Horizontal 145kw 400V Francis Hydro Turbine

I'm Online Chat Now

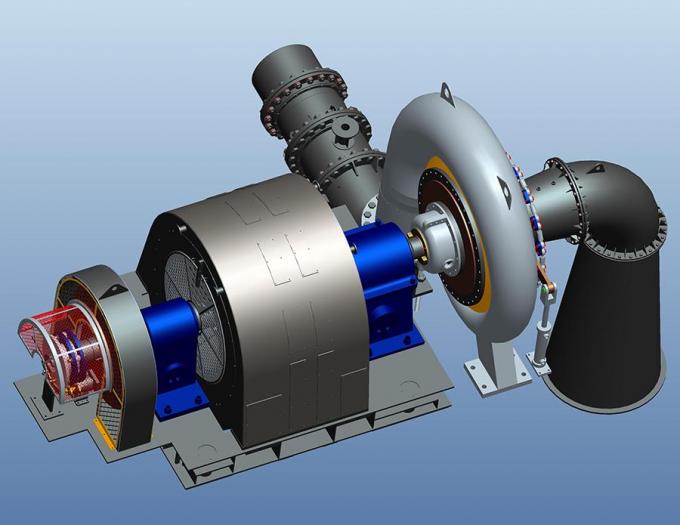

Horizontal 145kw 400V Francis Hydro Turbine

Horizontal 145kw 400V Francis Hydro Turbine
Horizontal 145kw 400V Francis Hydro Turbine Horizontal 145kw 400V Francis Hydro Turbine Horizontal 145kw 400V Francis Hydro Turbine

Large Image :  Horizontal 145kw 400V Francis Hydro Turbine

Product Details:
Place of Origin: CHINA
Brand Name: Dongfeng Electric
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wood box
Payment Terms: L/C, T/T
Detailed Product Description
Product Name: Mixed-Flow Type Hydro Turbine Unit Shaft Type: Vertical/Horizontal
Material: Steel Plate/Stainless Steel Vertical Mixed-flow Type Rated Power(KW): 1000~99000
Horizontal Mixed-flow Type Rated Power(KW): 145~7500 Head: 20-200m
High Light:

400V francis hydro turbine

,

145kw horizontal francis turbine

,

400V francis water turbine

Mixed-Flow Type Hydro Turbine Unit





Introduction of mixed-flow type hydro turbine unit



The mixed-flow type hydro turbine unit is widely used in hydropower stations because of its features of high water head and medium flow water power resources. With continuous development in hydropower products, our company has accumulated rich experience in the design and manufacture of mixed-flow type hydro turbine unit, gradually forming a complete and wide range of excellent mixed-flow type hydro turbine product series which are suitable for a variety of water head sections with different capacities and speeds in different water quality conditions of power stations. Among them, the maximum runner diameter is up to 4.75 meters, and the maximum unit capacity is up to 90MW. Our company has produced more than 500 sets of mixed-flow hydropower equipment for more than 300 power stations in mainland China and abroad. The products are sold well with a high reputation in 29 provinces and cities in China and exported to more than ten countries including Japan, Turkey, India, Vietnam and Pakistan.



The performance of Francis turbine



  1. Application range: wide range of application head: 20m-700m
  2. Structural features: simple structure, high strength of the runner
  3.  Performance characteristics: Highest efficiency. The highest efficiency is 95%.
  4. Disadvantages: the blades are fixed, it is difficult to adapt to the changes of water head and load, and the efficiency is reduced under non-design conditions.

Specification



Water Head 20m-200m
Power range 90MW
Flow 0.15-10m³/s
Frequency 50HZ/60HZ
Generator Voltage 400V, 800V, 6300V, 10500V
Layout pattern Horizontal or Vertical
Material Stainless Steel ZG0Cr13Ni4Mo
Excitation Brushless or Static excitation system
Lifespan 50 years
Generator Insulation F/F

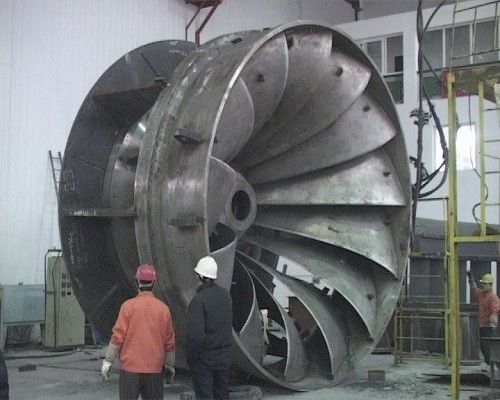

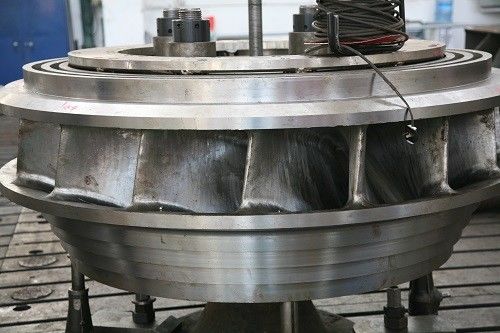

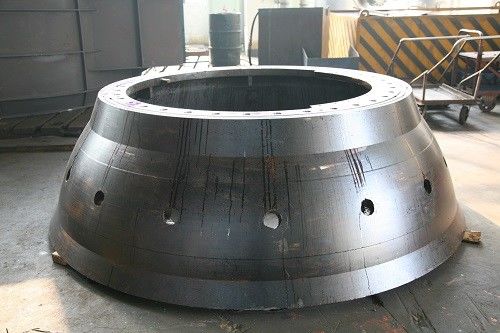

Manufacturing capacity





Horizontal 145kw 400V Francis Hydro Turbine 1Horizontal 145kw 400V Francis Hydro Turbine 2Horizontal 145kw 400V Francis Hydro Turbine 3Horizontal 145kw 400V Francis Hydro Turbine 4



Some cases



Horizontal 145kw 400V Francis Hydro Turbine 5Horizontal 145kw 400V Francis Hydro Turbine 6Horizontal 145kw 400V Francis Hydro Turbine 7Horizontal 145kw 400V Francis Hydro Turbine 8
