Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydro Power Electric Francis Turbine Generator | Shaft Type: | Vertical/Horizontal |
|---|---|---|---|
| Material: | Steel Plate/Stainless Steel | Vertical Mixed-flow Type Rated Power（KW）: | 1000~99000 |
| Horizontal Mixed-flow Type Rated Power（KW）: | 145~7500 | Head: | 20-200m |
| Highlight: | 107rpm francis reaction turbine,107rpm francis hydro turbine,60HZ Francis Turbine Generator |
||
107rpm~1000rpm Speed Hydro Power Electric Francis Turbine Generator
Specification
| Water Head | 20m-200m |
| Power range | 50KW-150MW |
| Flow | 0.15-10m³/s |
| Frequency | 50HZ/60HZ |
| Generator Voltage | 400V, 800V, 6300V, 10500V |
| Layout pattern | Horizontal or Vertical |
| Material | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless or Static excitation system |
| Lifespan | 50 years |
| Generator Insulation | F/F |
Francis turbine is a kind of turbine suit to water head 20-300meters and with certain suitable flow.
It could be divided into vertical and horizontal arrangement. Francis turbine have the advantage of high efficiency, small size and reliable structure.
Horizontal Francis turbine unit, with horizontal shaft, could be 2 or three supports. Which is normally one stair arrangement. Simple structure, easier operation and maintainence.
Vertical Francis turbine unit, with vertical shaft, metal spiral case or concrete spiral case. With adjustable guide vane, and stay ring etc parts, are suit to runner diameter bigger than 1000mm. Our engineer will select the most suitable Francis turbine for your hydro power project.

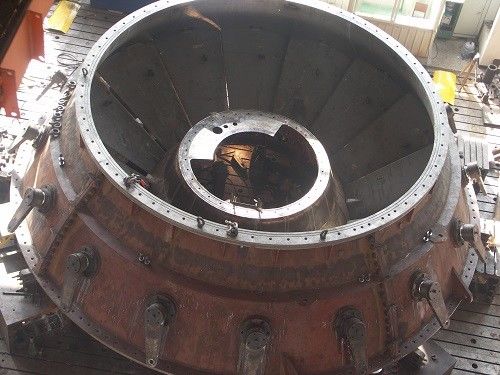

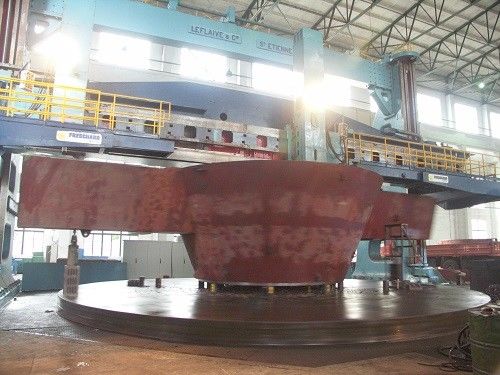

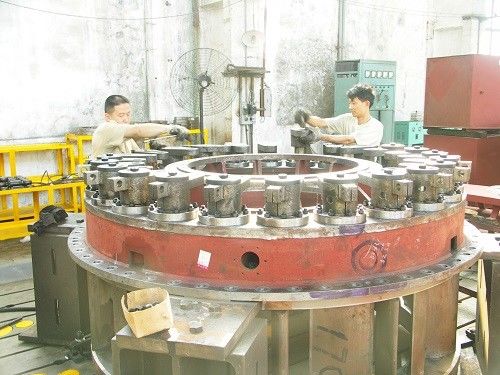

Manufacturing capacity
Some cases
